RIVET STYLE BOLTLESS SHELVING
RIVET STYLE BOLTLESS SHELVING

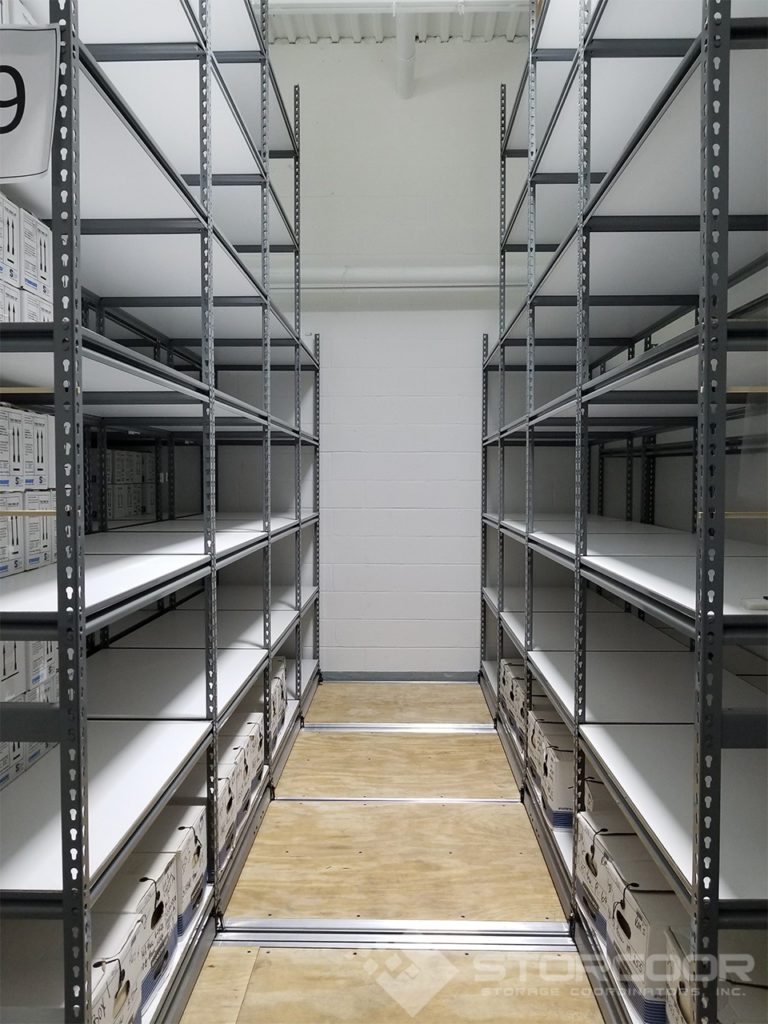

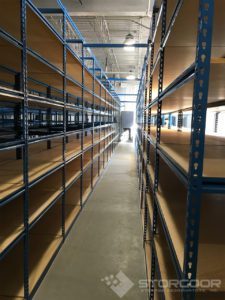

Rivet Style Shelving has become the shelving of choice for so many applications. At one time, it was used predominately for bulk and archive storage. Now, RiveTier shelving is used for retail storage, healthcare storage, garage storage, office and filing storage, and warehouse storage of all sizes. The components of Rivet Style Shelving are all boltless, and units can be assembled with a mallet – reducing installation costs by 30% – 40%. It can also be used in seismic conditions without adding any additional bracing.
Rivet Style Shelving Systems are offered in six different types of units. Whether it’s Long Span Shelving, Low Profile Shelving, Z-Beam Shelving, or a Multi-Level System, Rivet Style Shelving can fit your storage requirements.
Some key features of Rivet Style Shelving:
- Simple Assembly – No additional hardware needed
- Structural Integrity – 14 gauge & 16 gauge steel components
- 4 side access to stored items with open style shelving units
- 4 types of beams available that will handle virtually any storage need (from a 12” x 12” shelf to a 48” x 96” shelf)
- Decking Options: Particle Board, Melamine Coated Particleboard (MCP), and Wire Decking
TYPICAL STORAGE APPLICATIONS FOR RIVET STYLE SHELVING
- Office & Filing Storage – office supplies, archive storage, and filing.

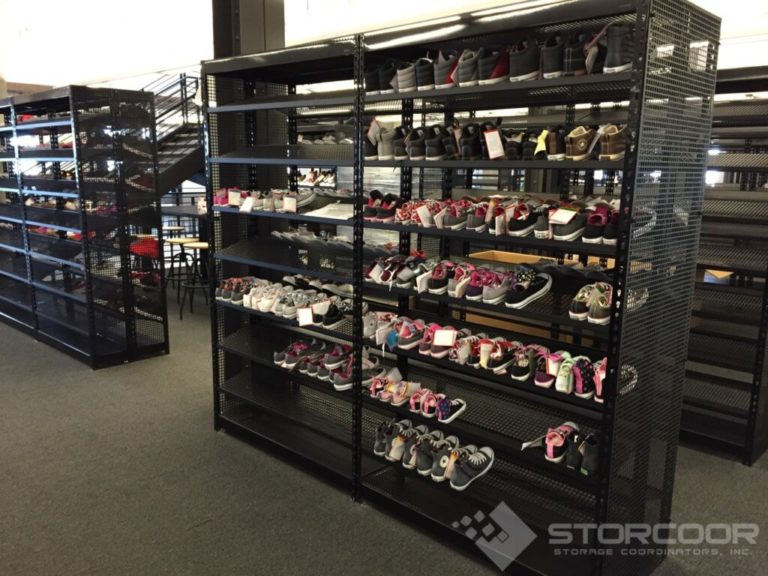

- Retail Storage – shoes, apparel storage, electronics, boxed merchandise, cosmetics, appliances, RTA furniture, etc.
- Material Handling Storage – parts, warehouse equipment, and tools.
- Healthcare Storage – archival records, linens, supplies.
- Restaurant Storage – Food and beverages, supplies, equipment.
REQUEST A QUOTE
Are you in the market for Rivet Style Boltless Shelving for your application? Click the link below and fill out our form. One of our experts will get back with you shortly.
RIVET STYLE BOLTLESS SHELVING
Rivet Shelving Post Styles
Rivet Shelving comes in 3 different post styles for standard duty, heavy-duty, or common “T-Posts” for when building a run of units adjacent to each other (starter and add-on units). Shelves are adjustable on 1-1/2″ increments.
Standard Duty Angle Posts
1-1/2” x 1-1/2”
14 gauge steel
For applications up to 12’ high
Heavy Duty Angle Posts
1-7/8” x 1-7/8”
14 gauge steel
For applications up to 12’ high, heavy capacity, and mezzanine or multi-level shelving applications
Common T-Posts
For add-on units in rows up to 12’ high
14 gauge steel
Rivet Shelving Beam Styles
Rivet Shelving comes in 4 different beam styles for every storage situation you need – from light duty to heavy duty applications up to over 1,000 lbs per shelf.

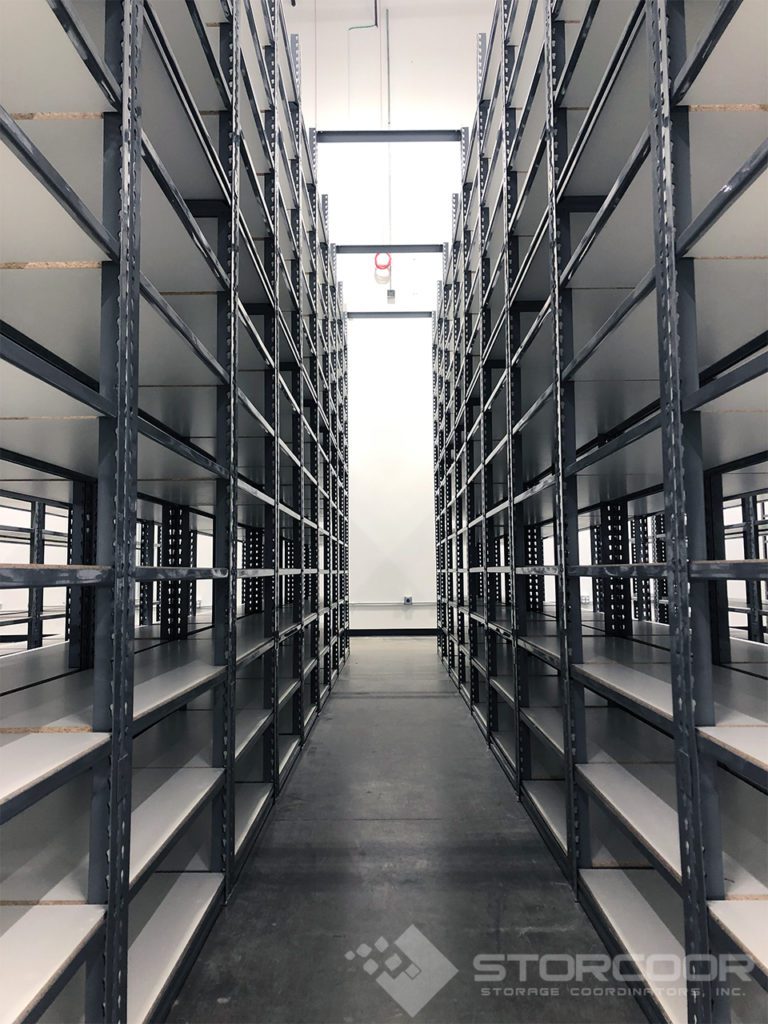

Single Rivet Beam
Lowest profile beam available
When the low profile of a metal shelf is needed—without the high cost
Ideal for lightweight storage applications
Particle board or MCP is hidden from view
Load capacity up to 350 lbs. per shelf

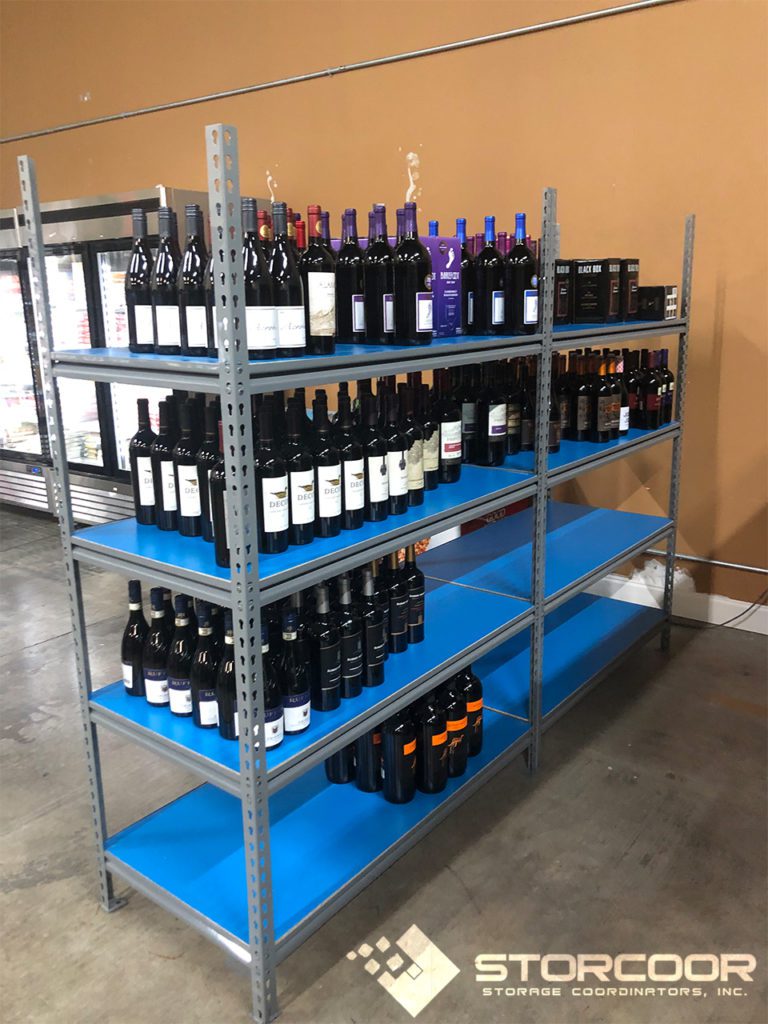

Z-Beam
Offers a lower profile than the Double Rivet SS Beam—when shelf height spacing is a consideration
Higher capacity than the SSLP Beam, Z Beam is ideal for mid-range spans
Particle board or MCP shelves hidden from view
Load capacity up to 1,000 lbs. per shelf
Double Rivet SS Beam
Ideal for heavy loads or large items requiring spans up to 8’ wide
Can be accessorized to increase capacity further
Particle board/MCP fully exposed
Load capacity up to 1,400 lbs. per shelf
Double Rivet Channel Beam
Highest capacity Rivet Style beam available
Can be accessorized for increase capacity further
Particle board/MCP fully exposed
Load capacity up to 1,400 lbs. per shelf
